Hi everyone,

just a little remark concerning the proposed solution to the dynamic
setting of a timer from Anthony.

When generating any real-time code (e.g. Real-Time Simulation or
Application in Telelogic Tau SDL Suite), the proposed solution might
introduce a timer creep, i.e. the durations between the timer events
will get bigger than the desired 1.0. This is caused by the fact that
when the NOW-expression is evaluated, time has already expired (and also
because the timer-event does not necessarily occur at the specified
point in time, most probably a little later).

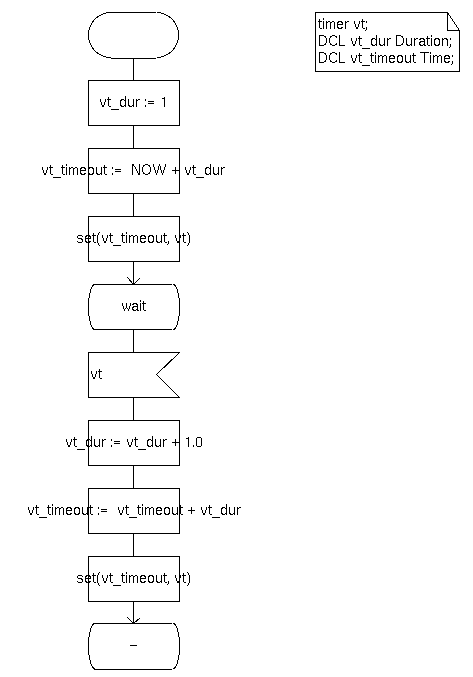

A more "robust" solution that will produce more precise durations is to
not use the NOW-expression for resetting the timer but rather remember
the recent time-out value, as in the attached example.

Greetings

~ Andreas Metzger

- --
