DocName Project Version FullName ShortDescription
TC_TP RailwayCrossing V2 TestCase_TrainPrecedence
Test the strategy: "Trains take precedence

     initially no trains on track

     1 slow tracks with durations (120, 30, 45, 5, 10);
     trains are created in 90s intervals

     1 fast track with durations (90, 15, 30, 5, 10);
     trains are created in  210s intervals

     car gate leaving duration = 2s,
     car arriving duration  := 5s

 The raw data can be found here.

 The x-axis shows the time in seconds, the y-axis shows the remaining distance to leave the crossing area in percent of the total area.

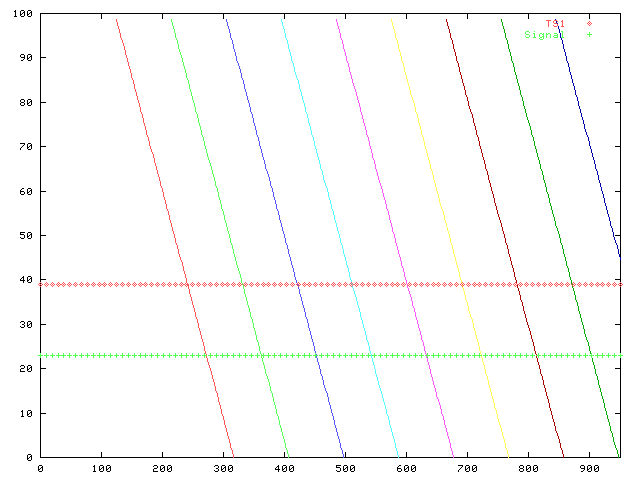

 Track 1:

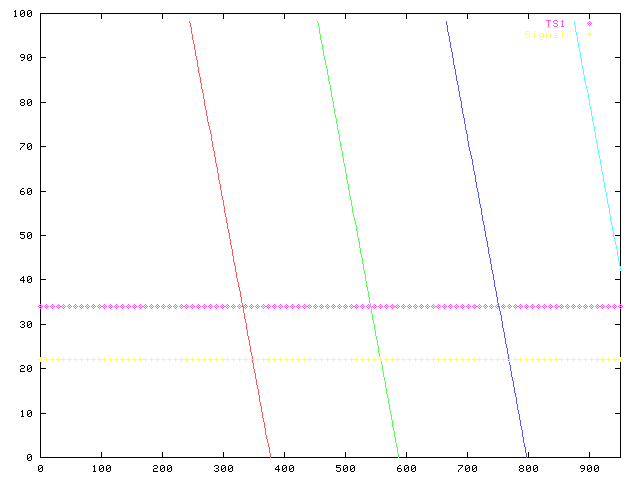

 Track 2 (fast track):

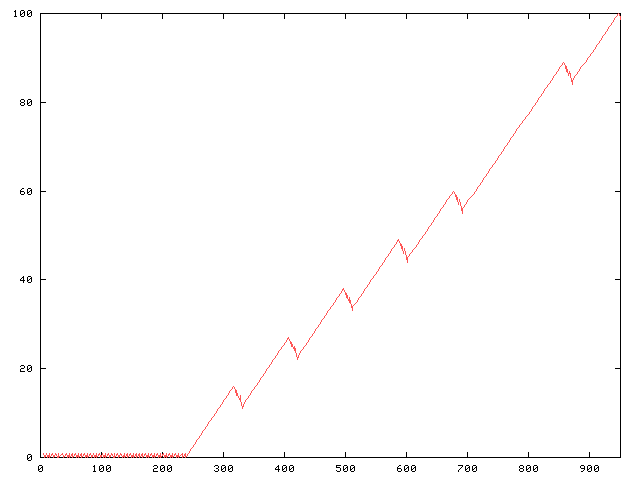

 Number of Cars:

Track Average waiting duration
track1 0.0%
track2 0.0%
