• initially no trains on track


• 2 slow tracks with durations (120, 30, 45, 5, 10);

trains are created in 90s intervals

• 1 fast track with durations (90, 15, 30, 5, 10);

trains are created in  210s intervals

• car gate leaving duration = 2s,

car arriving duration  := 5s

• creation period for track2 is reset after 40s to 90s

The x-axis shows the time in seconds, the y-axis shows the remaining distance to leave the crossing area in percent of the total area.

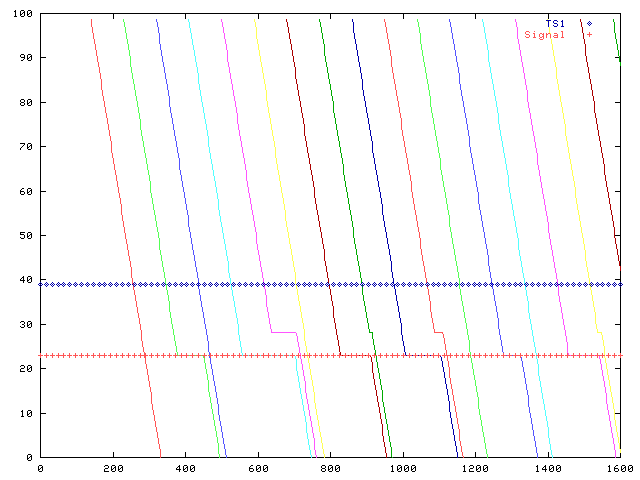

Track 1:

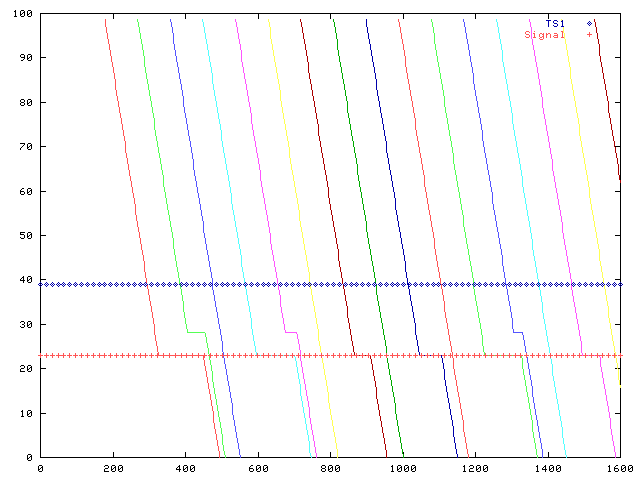

Track 2:

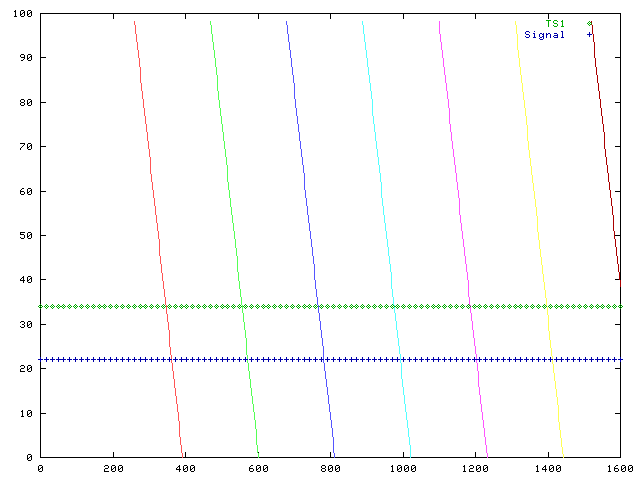

Track 3 (fast track):

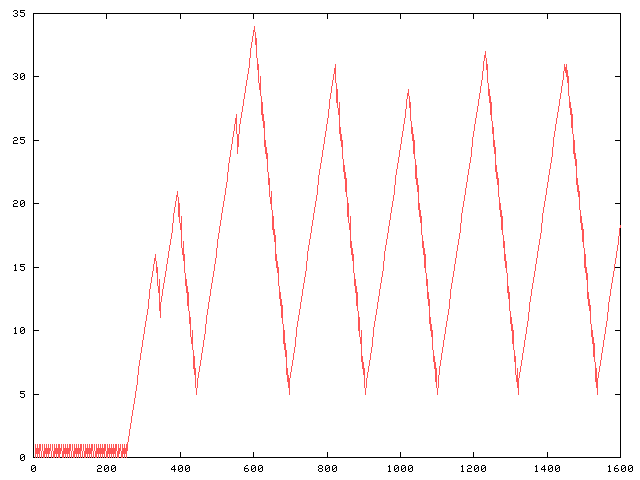

Number of Cars:
